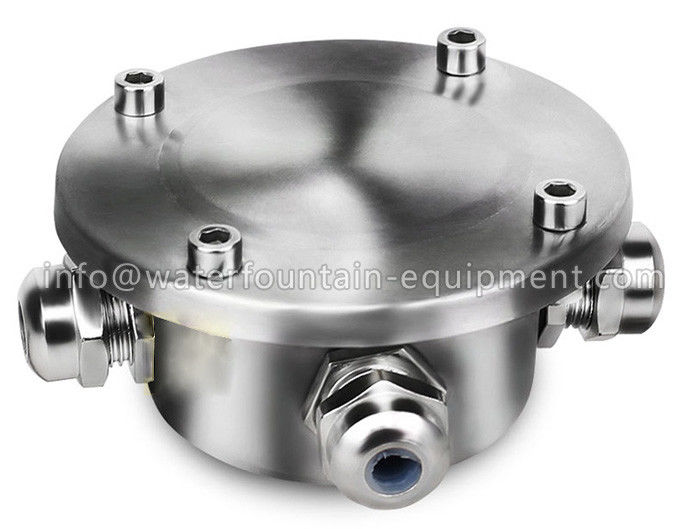

Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors

Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors

  • Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors
  • Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors
  • Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors
Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors
Product Details:
Place of Origin: guangdong, China
Brand Name: autumn solar
Model Number: 4020
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiable
Packaging Details: carton
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs / month
Contact Now
Detailed Product Description
Place Of Origin: Guangdong, China Model Number: 4020
Protection Grade: IP68 Type: Junction Box
Material: Stainless Steel Keyword: Underwater Connection Box
High Light:

water fountain accessories

,

water fountain machine

IP68 Stainless Steel Underwater Connect Junction Box for underwater lighting



Product Description:


1. Fully stainless steel stretching and moulding.

2. High-elastic silicon rubber gasket, ip68

3. S/A/B/C/D-type press-block connection joints for choice

4. Maximim mumber of the connection joints for installation:12 pieces



SPECIFICATIONS OF STAINLESS STEEL UNDERWTER TERMINAL BOX



Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors 0



model description
BB-85 S / A / B/ type press – block connection joints for choice. Maximum number of connection joints is 4 pieces
BB-115 S / A / B/ C type press – block connection joints for choice. Maximum number of connection joints is 6 pieces
BB-145 S / A / B/ C / D type press – block connection joints for choice. Maximum number of connection joints is 12 pieces



SPECIFICATIONS OF CONNECTION JOINTS:Terminal IP68 Waterproof Junction Box , High - Elastic Cable Junction Box Connectors 1
model material Wiring hole diameter Suitable cable diameter Partial international cable specification (for reference only)
S Alloy copper plating nickel Φ7.5mm Φ5.5 - Φ7mm 3X0.5 / 3X0.75
A Alloy copper plating nickel Φ10.5mm Φ7.5 – Φ10mm 2X1.2 / 2X1.5 / 3X1 / 3X1.5/ 4X1
B Alloy copper plating nickel Φ13.5mm Φ10.5 – Φ13mm 2X2.5 / 2X4 / 3X2.5 / 4X2.5/ 3X2.5+1.5
C Alloy copper plating nickel Φ17.5mm Φ13.5 – Φ17mm 2X6 / 3X4 / 3X6 / 4X4/ 3X4+1X2.5
