HONG KONG AUTUMN SOLAR TRADING CO., LIMITED
ISO qualified manufacturer / supplier for water fountain nozzles, colorful waterfall, musical fountain, mist fountain, LED lights, submersible pump etc.
 |
| Place of Origin: | Guang Dong, China |
| Brand Name: | autumn solar |
| Certification: | ce for soalr controller |
| Model Number: | 001-00146 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton+ wood / iron frame |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 PCS/Month |
| Model: | 001-00146 | Name: | Swimming Pool Solar Panel |
|---|---|---|---|
| Panel Size: | 2mx1m | Collector Mateiral: | Polypropylene For Outdoor With UV Stable |
| Pipe Material: | PVC | Type: | Pressurized, Testing Pressure 30 PSI |
| Application: | Swimming Pool Heating | Installation: | Can Be Mounted On Any Roof Or Ground |
| Life Span: | 5 Years | Temperature Resistant: | From -20℃ To 115℃ |
| High Light: | solar powered pool heater,jacuzzi hot tub heater |
||

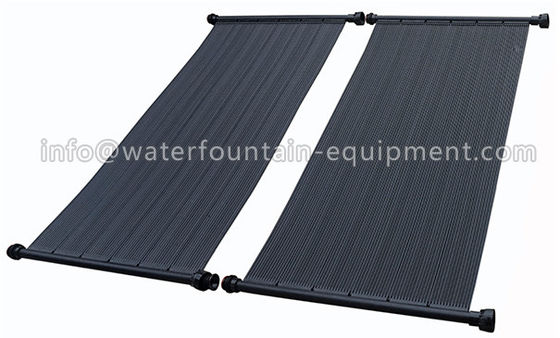

Black less lose heat plastic solar heating panels for swimming pool
FEATURES:
1. Black polypropylene plastic collectors, light and chemical inert
2. High efficient. Modular and rigid with individual tubes running lengthwise.
3. Solar area=70% pool area
4. Can be mounted on racks or any roof
5. Perfect performance in windy or colder areas
CONSTRUCTURE:
Individual panels are connected together with swivel barrel union.
Each panel has 72 individual tubes
SPECIFICATION:
| Supplier code | 001-00142 | 001-00146 | 001-00148 |
| size | 1.1m X 1m | 2m X 1m | 3m X 1m |
| Gross area | 1 m2 | 2 m2 | 3 m2 |
| Net weight | 3 kg | 4.7 kg | 8.1 kg |
| material | Polypropylene for outdoor with UV stable | ||
| recommendation | Solar area = 70% pool area | ||
| Flow rates Rec per square meter | 10 L/min | ||
| Testing pressure | 30 PSI | ||
| Working pressure | 10 PSI | ||
| Temperature resistant | From -20℃ to 115℃ | ||
| package | Wood box or pallet | ||
| warranty | 5 years | ||
Fully Automatic pool solar heating system
This system allows you total freedom to enjoy your pool.
Without having to anually turn valves on and off.
The digital solar controller activates the circulating pump
Easy for installation
Sun+ panel can be installed on any roof or racked.
INSTALLATION DIAGRAM:
