Landscape Stainless Steel Water Pump , City Square Centrifugal Pond Pump 13m Head

Product Details:

Place of Origin:	made in China
Brand Name:	autumn solar
Certification:	ce
Model Number:	QSPB65-13--4

Payment & Shipping Terms:

Minimum Order Quantity:	one PC sample order acceptable
Price:	negotiable
Packaging Details:	wood case
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000 pcs / month

Contact Now

Detailed Product Description

Name:	Water Fountain Pump	Model:	QSP65-13-4
Power:	4KW/380V/50HZ	Flow Rate:	65 M3/h
Head:	13m	Material:	Stainless Steel
Pump Type:	Submersible Pump, Centrifugal Pump	Drive Mode:	Electricity
Impeller Structure:	Closed Impeller	Impeller Quantity:	One Stage
High Light:	garden water fountain pumps , amphibious water pump

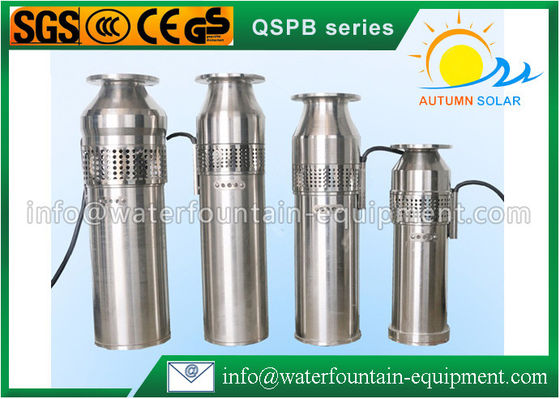

China 380V landscape submersible stainless steel fountainwater pump

introduction of stainless steel water fountain pump :

QSPB water fountain pump is our newly developed product.

The pump motor is made of high quality material DR470 cold-rolled steel, evening to increase the number of turns of windings and diving line wire diameter, cable in three phase four wire type JHS fountain, special cables, impeller increases the loose prevention device;

Motor chamber adopts imported antirust enamel, through the above structure improvements make submersible pump inertia small, thus the response speed, with high performance special shaft bearing, to improve the insulation level, so as to meet the needs of the special music fountain, frequent starting.

Caution: Do not operate for long time when there is no water in the pump

TECHINCAL PARAMTER:

No.	model	Flow rate	Head	Power	Outlet diameter	Speed	Product size	Flange
		(m3/h)	(m)	(KW)	(mm)	(rpm)	(diaXH) mm	Outer dia.(mm)	Inner dia.(mm)	Hole centre distance	Bolt size and qty
1	QSPB15-14-1.1	15	14	1.1	50	2860	148X470	140	50	110	4- Φ11
2	QSPB25-9-1.1	25	9	1.1	65	2860	140X465	156	65	135	4- Φ11
3	QSPB40-6-1.1	40	6	1.1	70	2860	154X471	156	70	135	4- Φ11
4	QSPB65-7-2.2	65	7	2.2	100	2860	158X550	170	100	150	4- Φ11
5	QSPB25-17-2.2	25	17	2.2	65	2860	158X540	156	65	135	4- Φ11
6	QSPB40-12-2.2	40	12	2.2	80	2860	180X555	180	80	160	4- Φ11
7	QSPB65-10-3	65	10	3	100	2860	158X570	170	100	150	4- Φ11
8	QSPB40-16-3	40	16	3	80	2860	158X575	180	80	160	4- Φ11
9	QSPB100-9-4	100	9	4	90	2860	180X592	180	90	160	4- Φ11
10	QSPB65-13-4	65	13	4	90	2860	180X592	180	90	160	4- Φ11
11	QSPB40-21-4	40	21	4	80	2860	180X588	180	80	160	4- Φ11
12	QSPB25-32-4	25	32	4	65	2860	203X578	165	65	145	4- Φ11
13	QSP100-12-5.5	100	12	5.5	90	2860	180X642	180	90	160	4- Φ11
14	QSP65-18-5.5	65	18	5.5	90	2860	203X589	180	90	160	4- Φ11
15	QSP40-28-5.5	40	28	5.5	80	2860	203X585	180	80	160	4- Φ11
16	QSP160-8-5.5	160	8	5.5	120	2860	203X597	210	120	190	4- Φ11
17	QSP32-30-5.5	32	30	5.5	70	2860	180X736	165	70	134	4- Φ11
18	QSP30-36-5.5	30	36	5.5	70	2860	180X736	165	70	134	4- Φ11
19	QSP50-24-5.5	50	24	5.5	80	2860	203X585	180	80	160	4- Φ11
20	QSP20-50-5.5	20	50	5.5	70	2860	180X850	165	70	134	4- Φ11
21	QSP100-15-7.5	100	15	7.5	90	2860	180X672	180	90	160	4- Φ11
22	QSP65-25-7.5	65	25	7.5	80	2860	203X642	180	80	160	4- Φ11
23	QSP160-11-7.5	160	11	7.5	120	2860	203X654	210	120	190	4- Φ11
24	QSP80-20-7.5	80	20	7.5	90	2860	203X657	180	90	160	4- Φ11
25	QSP40-40-7.5	40	40	7.5	80	2860	180X798	180	80	160	4- Φ11
26	QSP30-50-7.5	30	50	7.5	70	2860	180X880	165	70	134	4- Φ11
27	QSP32-45-7.5	32	45	7.5	70	2860	180X880	165	70	134	4- Φ11
28	QSP50-36-7.5	50	36	7.5	80	2860	180X798	180	80	160	4- Φ11
